Yifang Cable Bare Aluminum Alloy Aster Conductor Almelec Conductor 366mm2

Brand Name : Yifang Cable

Model Number : JKLH

Certification : CE,ISO,UL,KEMA

Place of Origin : China

MOQ : 1km

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P

Supply Ability : 500km per month

Delivery Time : 5-8working days

Packaging Details : Wooden drum 1.1mx0.8mx1.1m, Wooden Steel Drum2.2mx1.45mx2.2m

Size : 54.6,93.3,117,228,288,336,507mm2

Standard : NFC 34 215,EN 50182

material : Aluminum Alloy

application : overhead lv or mv power line

Coutry : Senegal,Madagascar,Congo,Burkina Faso

Strands : 7,19,37,61

Contact Now

Yifang Cable Bare Aluminum Alloy aster conductor Almelec Conductor 366mm2

French Standard Aluminum Alloy Bare Almelec Cable with BS,ASTM,DIN,IEC standard

Quick Details

· Place of Origin: Henan, China (Mainland)

· Brand Name: Zhengcable

· Model Number: almelec cable with 7,19,37,61,91strands

· Insulation Material: none

· Type: HV MV LV

· Application: Overhead

· Conductor Material: Aluminium alloy

· Jacket: None

· advantage: Resistance chemical corrosion

· advantage1: anti heat-ageing,environment stress

· advantage2: light in weight

· advantage3: especially for laying across

Packaging & Delivery

Packaging Details:	wooden drum;wooden_iron drum;iron drum.
Delivery Detail:	sample(3d);in stock(10d);general cargo(15d);OEM/ODM(20d)

Product Description

All aluminium alloy conductor, aaac cable with BS,ASTM,DIN,IEC standard

1 Description of aaac cable

Aluminium alloy 6201 wires, concentrically stranded from 7 strands to 91 strands depending upon the size.

TECHNICAL DATA SHEET
Câble Almélec 366 mm² ASTER
NO	DESCRIPTION	UNIT	DATA
1	Type/ code name	--	Almelec 366
2	Material	--	Aluminium Alloy
3	Standards	--	IEC 61089,NFC 34 125,NF EN 50182
4	Cross Section Area	mm²	366

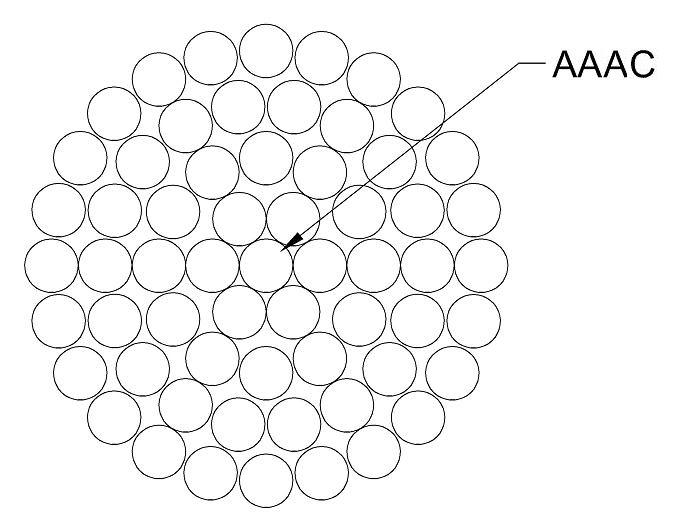

5	Conductor construction
	Wire No.	No.s	37
	Nominal wire dia.	mm	3.55
6	Approx. Overall Diameter	mm	24.84
7	Approx. Weight	kg/km	999
8	Min.Breaking Load	kN	111.6
9	Max. D.C. Resistant 20℃	Ω/km	0.0915
